Need something more custom? We have bespoke sizes available, call us to order on 07393475479
Diamond leaf stair spindles with hidden side fixings and hand forged hammered steel bars. Ornate French Gothic styling for a distinctive staircase.
📏 NEED A CUSTOM SIZE?
Message us for a quote! We answer all enquiries within 1-12 hours. 🕐
✅ SEAMLESS "HIDDEN FIX" DESIGN
✅ FREE UK DELIVERY
✅ 5-STAR REVIEWS
Elevate your staircase with the intricate beauty of our Diamond "Leaf" Hidden Fix Spindles.
These spindles feature a stunning 90mm Diamond-Shaped Flange with a relief leaf pattern. When installed, the diamond shape draws the eye upward, creating a sense of height and elegance. Combined with our seamless "Hidden Pin" mounting system, they offer a flawless finish with no visible screws.
The design
The mounting plate is a substantial 90mm x 90mm Diamond cast alloy flange, detailed with a radiating foliate (leaf) design. It holds a solid 15mm Hammered Steel Bar, which has a rugged, dimpled texture. This mix of ornate casting and raw hammered steel is typical of French Chateau, Gothic Revival, and Historic architecture.

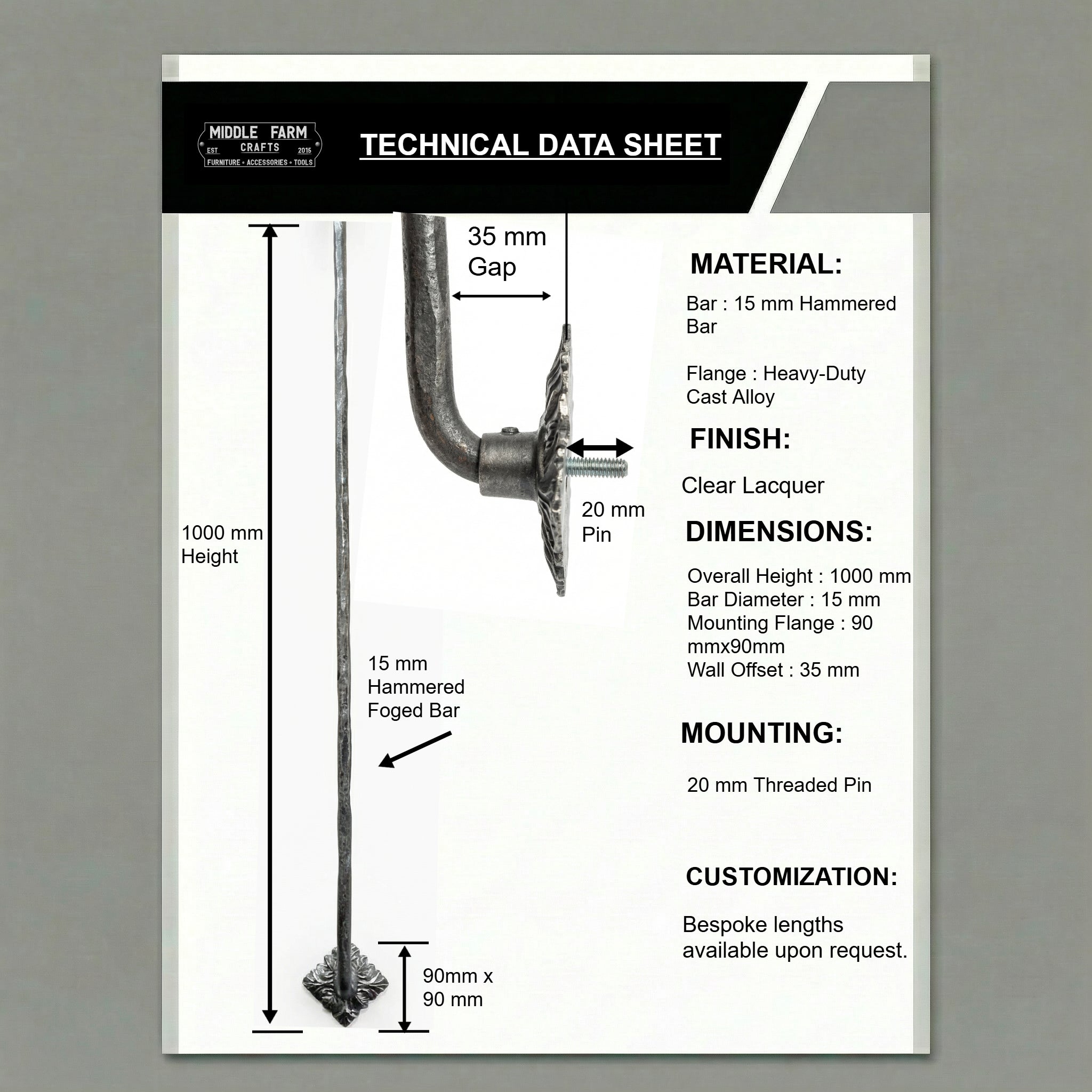

The specs (see data sheet in photos)
Material: 15mm Solid Forged Steel Bar (Hammered Texture).
Mounts: Ornate Diamond/Lozenge Cast Flanges.
Fixing Style: Hidden Threaded Pin (20mm pin on reverse).
Finish: Clear Lacquer. Protects the metal while showcasing the natural gunmetal grey/silver tones.
Length: 1000 mm / 100 cm (Standard). Custom lengths available.
Flange Dimensions: 90 mm x 90 mm (Diamond orientation).
Wall Offset: 35 mm gap.
Style: French, Gothic, Renaissance, Ornate, Historic.
What is included?
1 x Handcrafted Diamond Spindle (Hammered Rail + Cast Flanges attached).

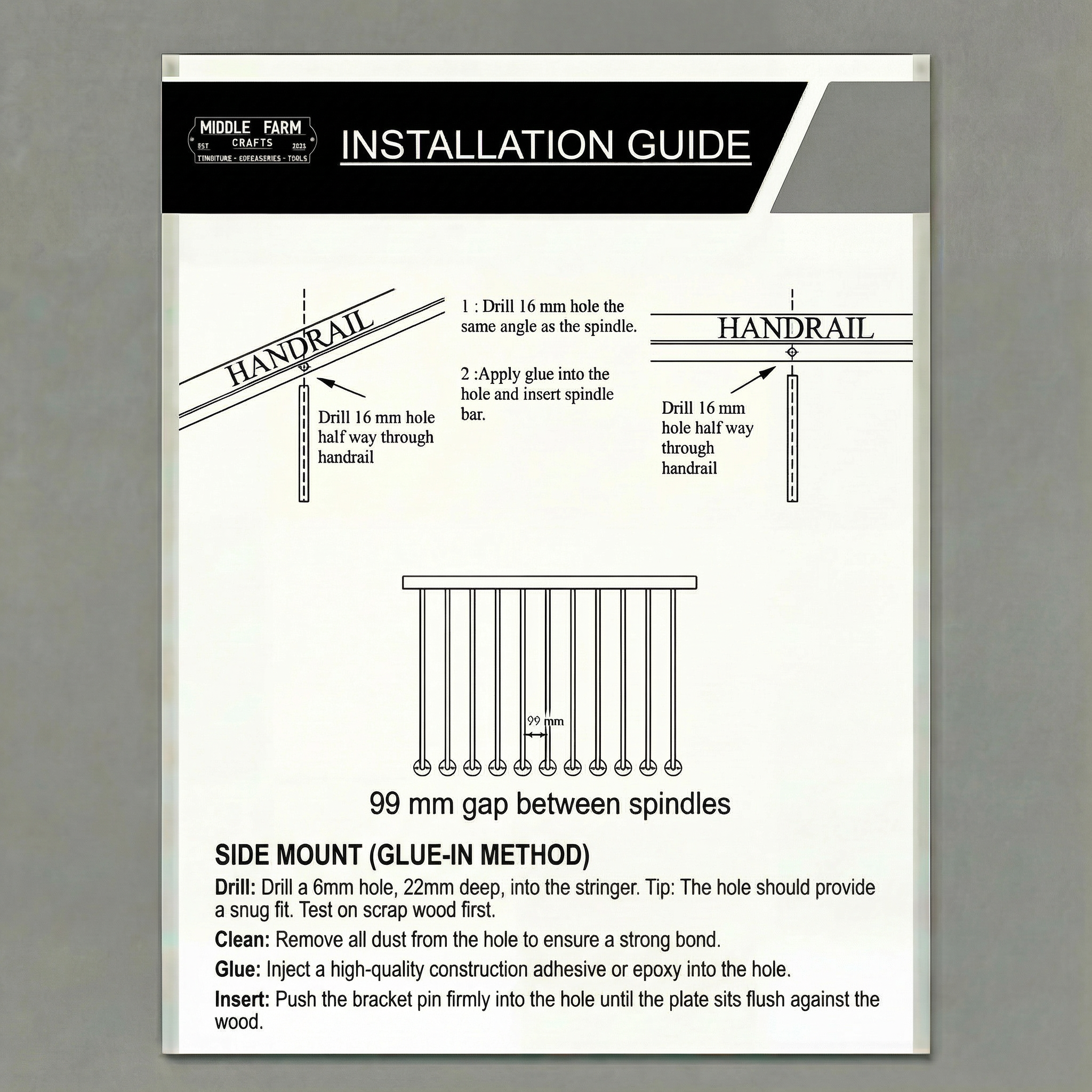

Note: This item uses a hidden pin fixing. Installation requires drilling a hole in your stringer and using construction resin or threading to secure the pin.
Why choose the diamond design?
Flawless Finish: The hidden fixing means the ornate pattern of the leaves is not interrupted by ugly screw heads.
Dynamic Shape: The diamond orientation feels more active and elegant than a standard square, perfect for grand staircases.
Texture: The hand-hammered bar catches the light, adding depth and character to the installation.
Why buy from middle farm crafts?
Specialist Manufacturing: We are one of the few UK makers offering these blind-fix architectural spindles.
Made in Britain: Hand-fabricated in our UK workshop since 2015.
Direct Support: We can guide you on the best installation methods for the hidden pin system.
Please note: As this is a clear lacquered raw metal product, natural variations in the forged steel tone are visible, enhancing the antique aesthetic.
Proudly Handmade in the United Kingdom.
Explore our stair spindle range
Compare designs and finishes in our stair spindles collection. Check the dimensions and mounting details above when choosing balusters for your staircase.
📏 NEED A CUSTOM SIZE?
Message us for a quote! We answer all enquiries within 1-12 hours. 🕐
✅ SEAMLESS "HIDDEN FIX" DESIGN
✅ FREE UK DELIVERY
✅ 5-STAR REVIEWS
Elevate your staircase with the intricate beauty of our Diamond "Leaf" Hidden Fix Spindles.
These spindles feature a stunning 90mm Diamond-Shaped Flange with a relief leaf pattern. When installed, the diamond shape draws the eye upward, creating a sense of height and elegance. Combined with our seamless "Hidden Pin" mounting system, they offer a flawless finish with no visible screws.
THE DESIGN
The mounting plate is a substantial 90mm x 90mm Diamond cast alloy flange, detailed with a radiating foliate (leaf) design. It holds a solid 15mm Hammered Steel Bar, which has a rugged, dimpled texture. This mix of ornate casting and raw hammered steel is typical of French Chateau, Gothic Revival, and Historic architecture.
THE SPECS (See Data Sheet in Photos)
Material: 15mm Solid Forged Steel Bar (Hammered Texture).
Mounts: Ornate Diamond/Lozenge Cast Flanges.
Fixing Style: Hidden Threaded Pin (20mm pin on reverse).
Finish: Clear Lacquer. Protects the metal while showcasing the natural gunmetal grey/silver tones.
Length: 1000 mm / 100 cm (Standard). Custom lengths available.
Flange Dimensions: 90 mm x 90 mm (Diamond orientation).
Wall Offset: 35 mm gap.
Style: French, Gothic, Renaissance, Ornate, Historic.
WHAT IS INCLUDED?
1 x Handcrafted Diamond Spindle (Hammered Rail + Cast Flanges attached).
Note: This item uses a hidden pin fixing. Installation requires drilling a hole in your stringer and using construction resin or threading to secure the pin.
WHY CHOOSE THE DIAMOND DESIGN?
Flawless Finish: The hidden fixing means the ornate pattern of the leaves is not interrupted by ugly screw heads.
Dynamic Shape: The diamond orientation feels more active and elegant than a standard square, perfect for grand staircases.
Texture: The hand-hammered bar catches the light, adding depth and character to the installation.
WHY BUY FROM MIDDLE FARM CRAFTS?
Specialist Manufacturing: We are one of the few UK makers offering these blind-fix architectural spindles.
Made in Britain: Hand-fabricated in our UK workshop since 2015.
Direct Support: We can guide you on the best installation methods for the hidden pin system.
Please note: As this is a clear lacquered raw metal product, natural variations in the forged steel tone are visible, enhancing the antique aesthetic.
Proudly Handmade in the United Kingdom.
